LVD-800 vehicle detector is specifically for the motorway、the security bayonet、E-police、the crossroads and so on for specially designed for high-speed response vehicle detector, innovation of the measurement circuit and algorithm to make the false detection, undetected、crosstalk and a deadlock to say goodbye!

Advantages:

● The exclusive patent polled mode pulse group to the sampling circuits;

● With resist of high energy radiation FPGA the high-speed measurement technology;

● Adopt to AEC-Q100 certified the high speed micro-controller;

● Built-in the system clock source of anti-shock and vibration to the design;

● Can withstand any electromagnetic wave the storage technology of satellite-level;

● The three lightning, ESD the design of isolation protection;

● The models of world's top brand to the core Electronic Components;

● The four level of adjustable frequency and the phase Multiple cards Synchronous Technology;

● Ultra-low power can solar the way of wireless transmission;

● Easy-to-understand the debugging intuitive of fashion panel design.

Features:

◆The wide range of inductance measurement the adaptive circuit of resonance frequency;

◆The frequency selective network of high quality factors and low parasitic capacitance;

◆Ambient temperature / humidity to influence the drift self-compensation algorithm;

◆Synchronous the digital way to multi-channel sequential scan's measurement technology;

◆The board card Built-in the perpetual calendar clock and 64MB storage space;

◆Optocoupler / relay switching value or the way of output communication;

◆The standard of DIN 41612-B,2 * 32 PIN interface and 3U highly;

◆Communication port：CAN2.0B、RS-232、RS-485.

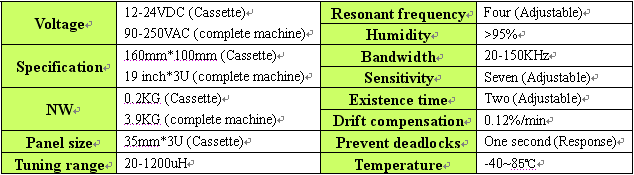

Technical parameters:
